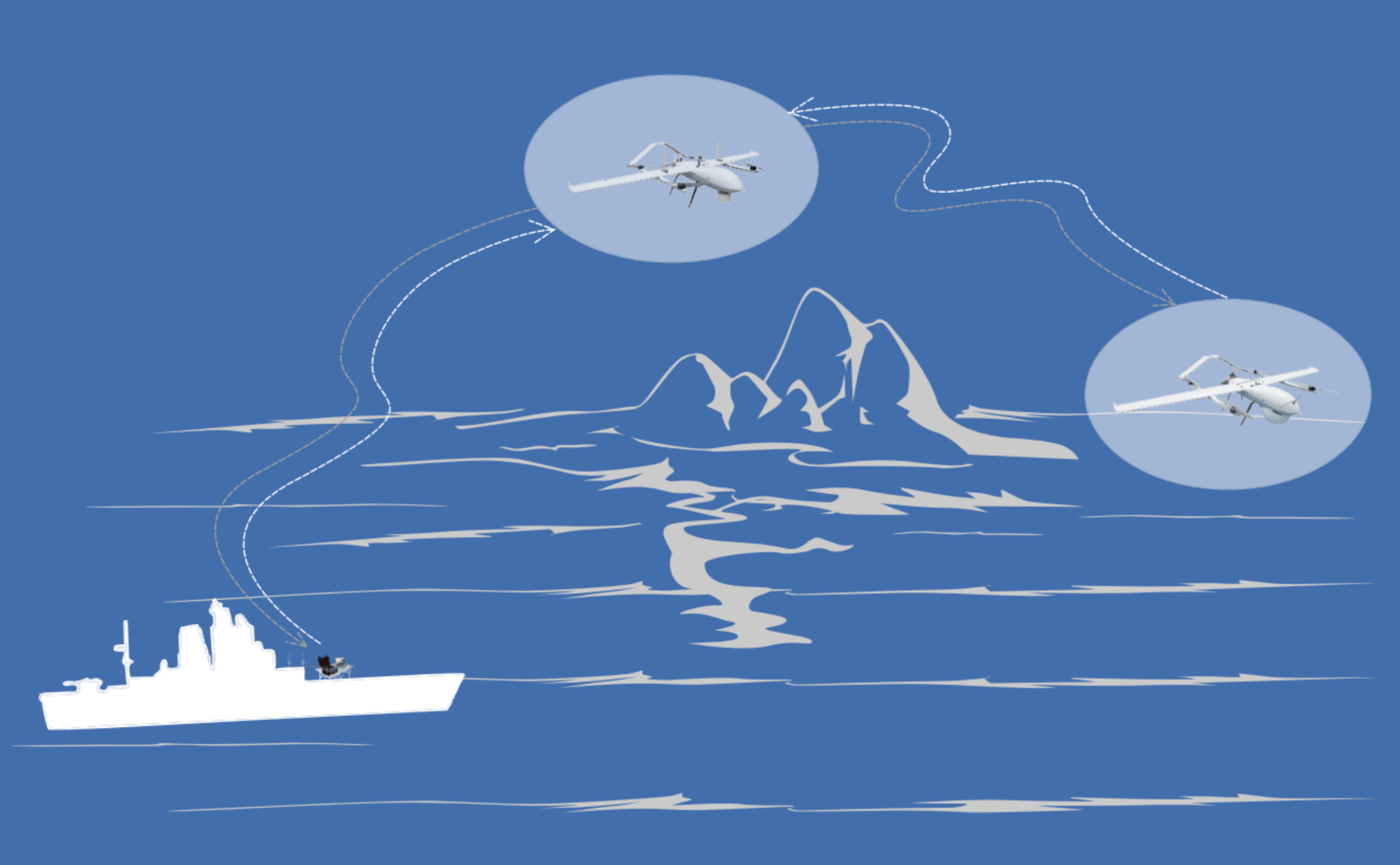

In drone applications, signal obstruction problems in non-visible environments are often encountered. In order to solve this industry pain point, this aircraft can effectively solve
It solves the occlusion problem and solves the problem of aircraft approaching reconnaissance objects at the same time, and the reconnaissance effect is outstanding.

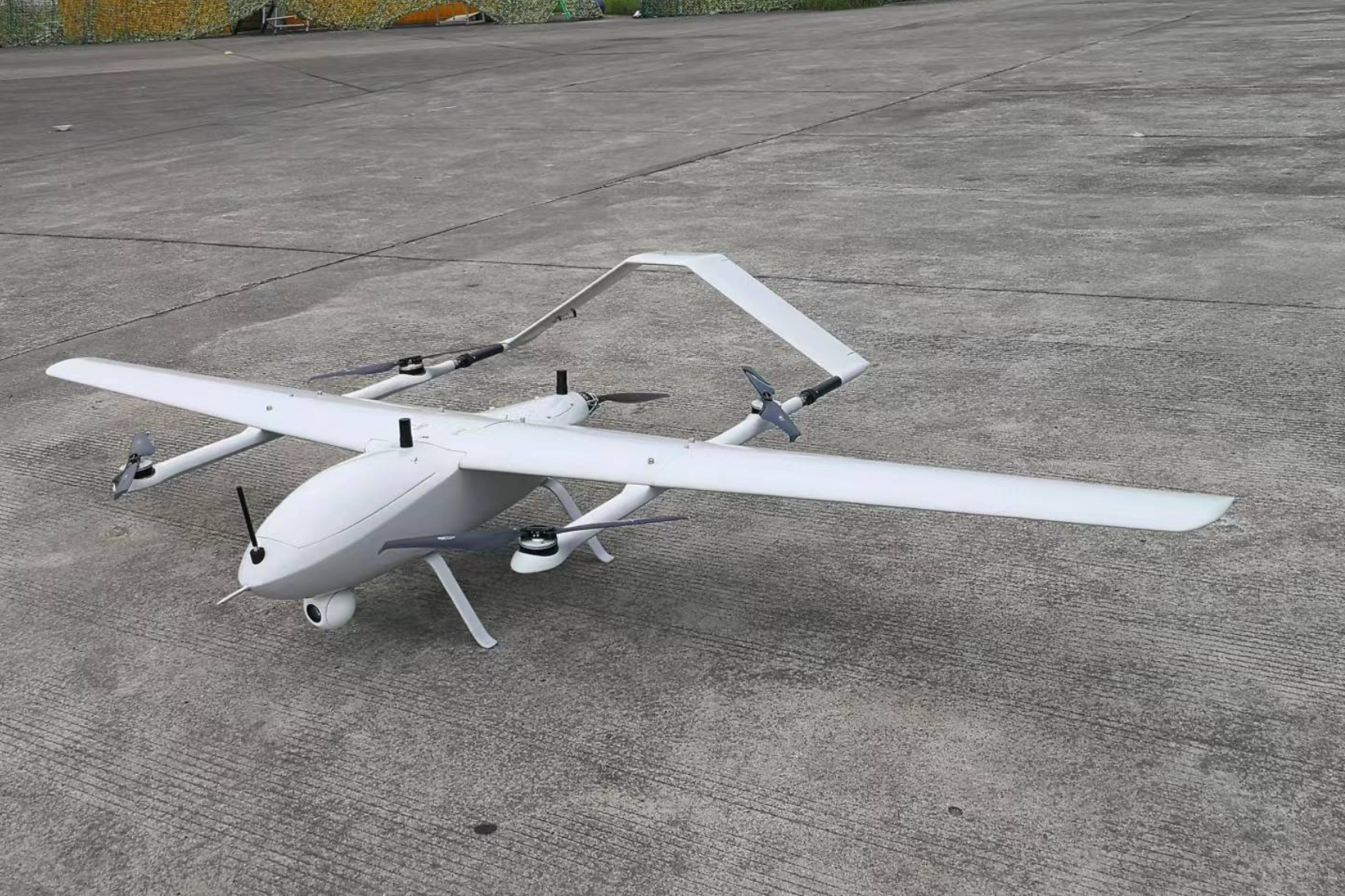

relay aircraft
Can effectively solve occlusion problems (such as mountainous areas, etc.)
The operating aircraft is close to the reconnaissance object (to avoid operating target problems)
Basic parameters (consistent with E260 flight platform, ≥ operating aircraft endurance time)
Wingspan: 3.2m, fuselage length: 1.7m
Maximum take-off weight: 20Kg
Cruising speed: 70km/h
Payload: 3kg
Maximum speed: 110km/h
Battery life: 2h
Wind resistance: level 5 for take-off and landing, level 6 for level flight
Working environment temperature: -20~55℃
Power mode: electric
Packaging size: 1350*625*490mm
